Façade systems
The iku® cleaning system fits three façade types: a cover-cap system for stick façades and refurbishments, structural glazing for flush glass, and unitised façades for high-rise towers. The same rails also carry a maintenance unit.
Cover-cap system
The wiper runs in a cover profile fixed over the mullions of a standard stick façade.
- Adapts to other façade systems
- Suitable for refurbishment of existing buildings
- Motor, roller and tension units concealed in the cover profile
Structural glazing
For flush, frameless glass façades, with the cleaning hardware built in from the start.
- Flat, uninterrupted glass surface
- Specified at design stage for new buildings

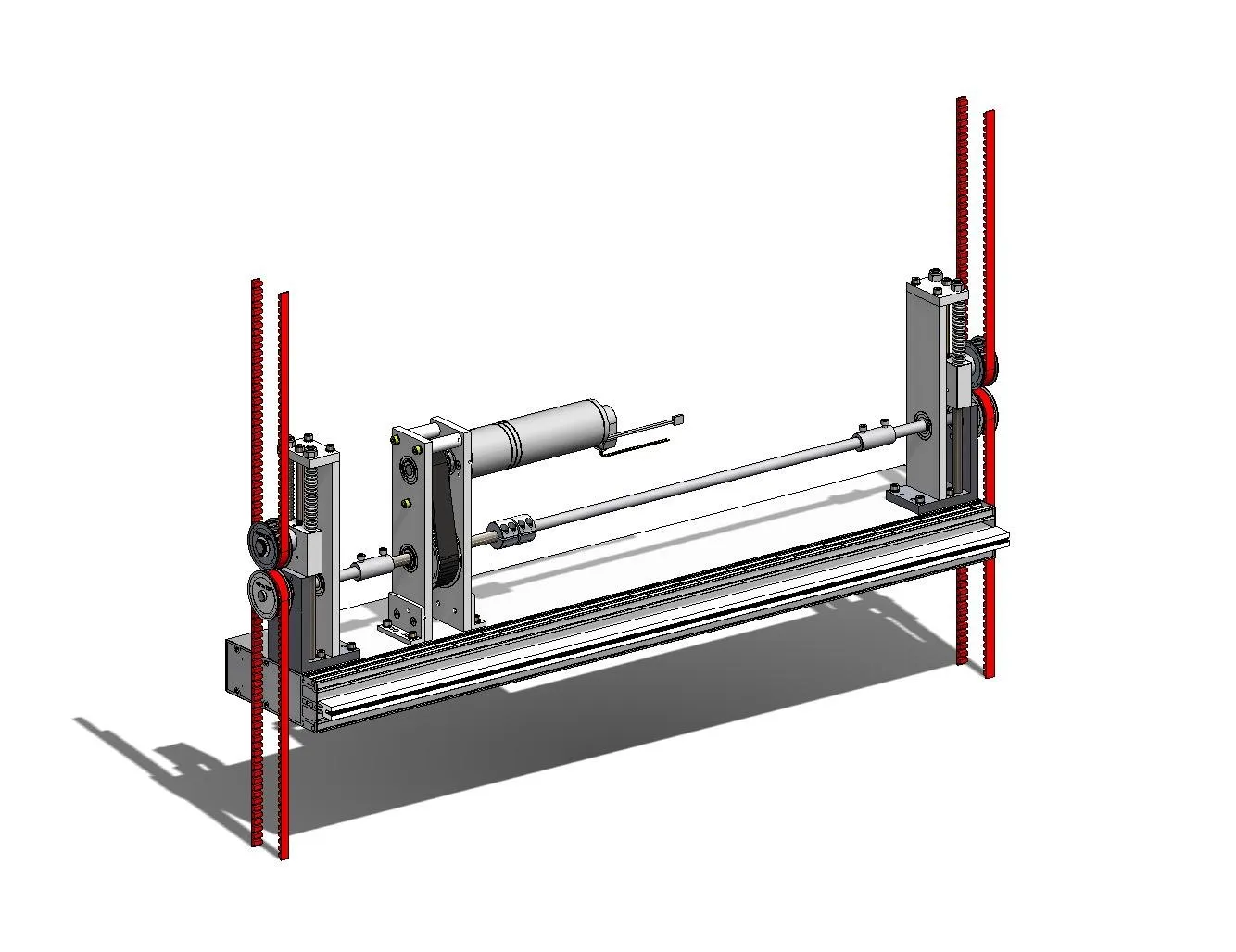

Unitised façade
The wiper unit is integrated into prefabricated façade elements, ready for high-rise towers.
- One motor unit for every 60 to 80 m of system height
- Glass fitted mechanically without silicone and replaceable from inside
- Installed with the façade, no extra site work

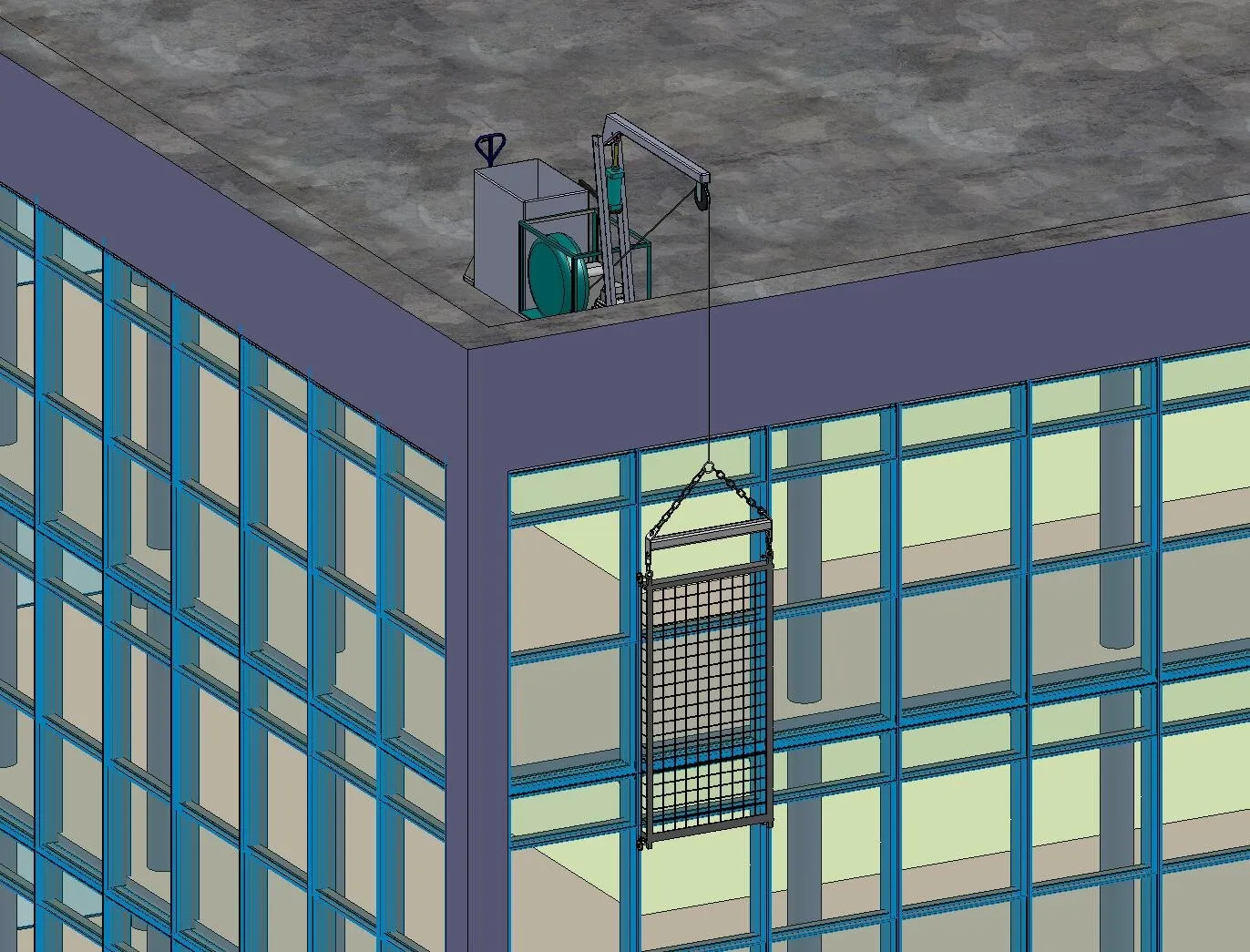

Flexible façade maintenance unit
Uses the same rails to move replacement glass and carry out maintenance without a permanent BMU.
- Damaged glass changed from inside and moved to the right floor
- No costly building maintenance unit to install
- One façade company for façade, cleaning and maintenance

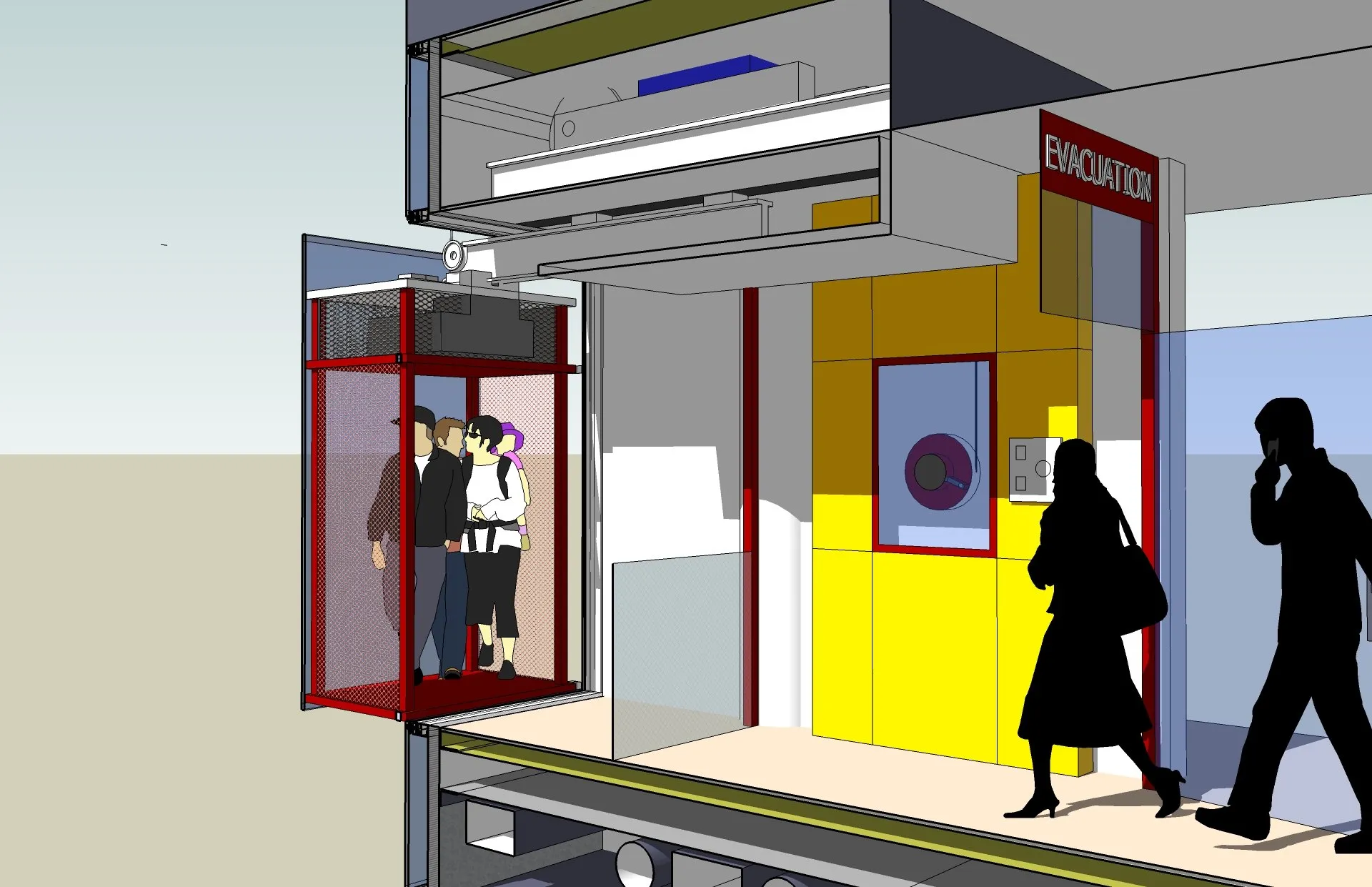

Concept
Integrated evacuation
A concept that adapts the façade rail system for civil defence use, including evacuation in a fire.
- Builds on the same rail and drive system
- Developed with civil defence use in mind
Guarantee and maintenance
The system carries a 10-year guarantee. Two-year warranty on moving parts, wear parts excluded. Extendable with a maintenance contract.
Yearly maintenance covers the control box, the motor and drive system, the wipers and the water system. A maintenance contract can include or exclude the exchange of spare parts.
Planning a façade?
Send us the façade type, height and location and we will tell you which iku® system fits.
